Amazon DynamoDB Integration

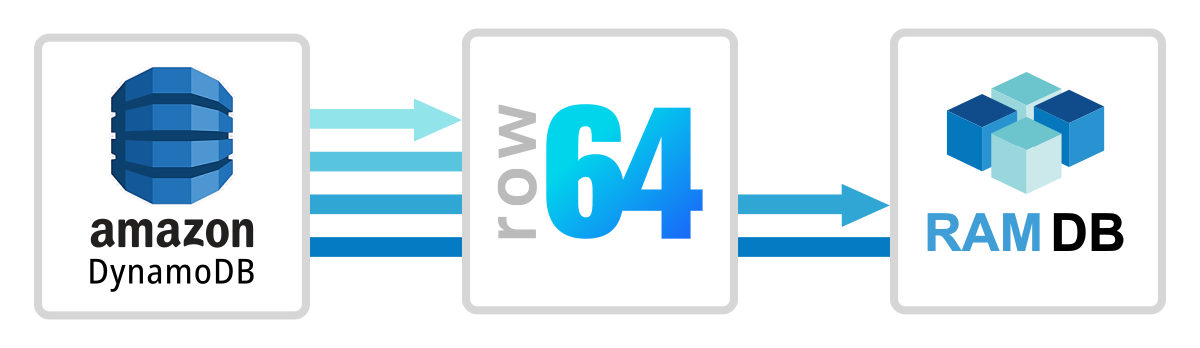

Amazon DynamoDB is a serverless, key-value NoSQL, document-oriented database service on AWS. It is designed to be flexible and highly scalable. Amazon DynamoDB integrates easily with Row64 by wiring to Row64 RamDb through Python.

Integration Overview

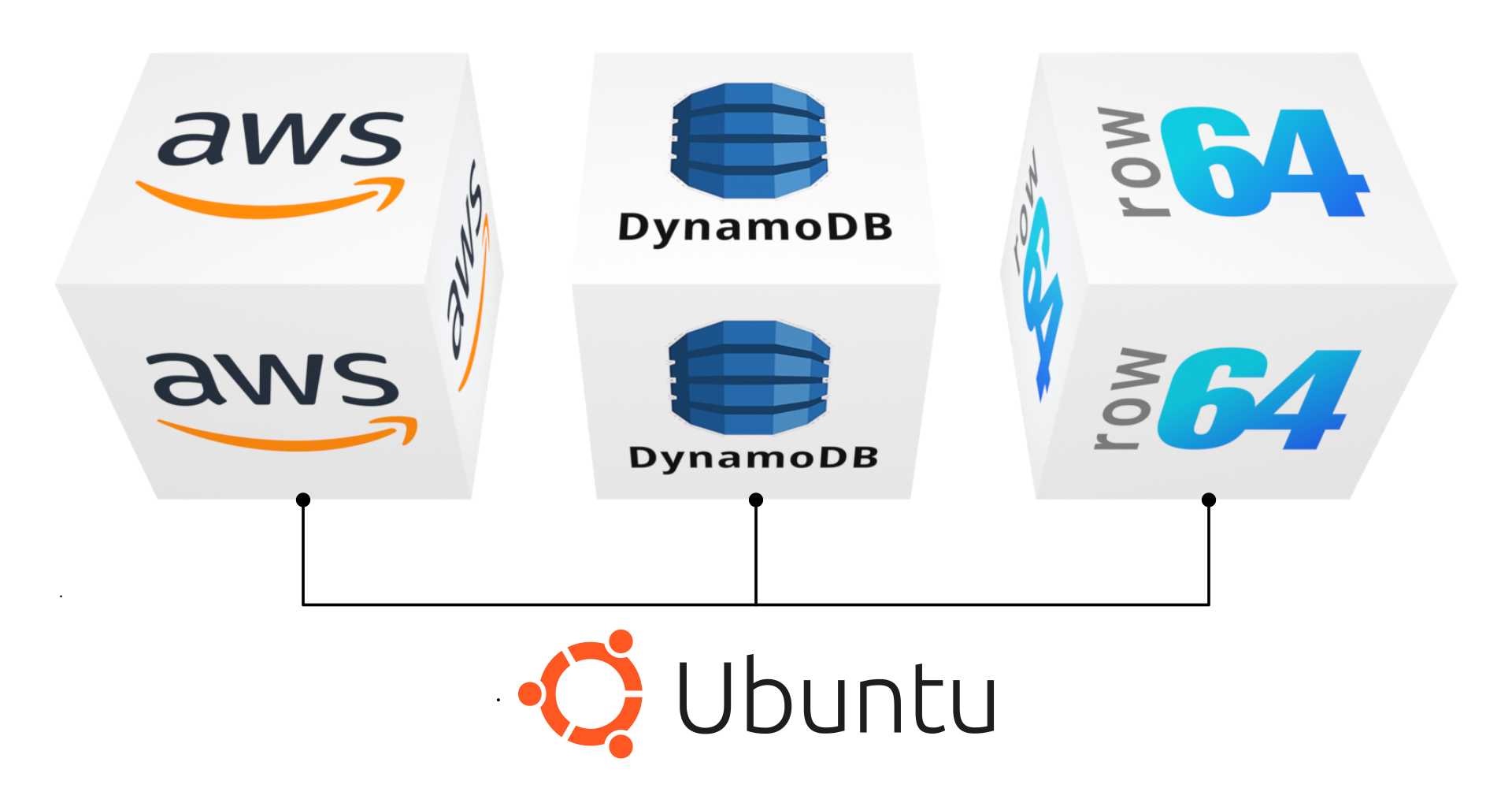

This guide outlines the simplest possible setup for integrating Amazon DynamoDB with Row64. This setup will utilize a single instance or server to install both Row64 Server and DynamoDB.

Download Row64 Server

The first step is to install Row64 Server to your instance of Ubuntu. If you do not already have Row64 Server set up, please refer to the following documentation to install Row64 Server on Ubuntu. Once you have it set up, return to this guide to proceed.

Set Up DynamoDB

This section explains how to download, install, and start a local instance of DynamoDB.

Prepare Java

Java is required to proceed. Install Java on your instance of Ubuntu by executing the following commands, line-by-line:

sudo apt update
sudo apt upgrade -y
sudo apt install openjdk-17-jdk -y

Download DynamoDB

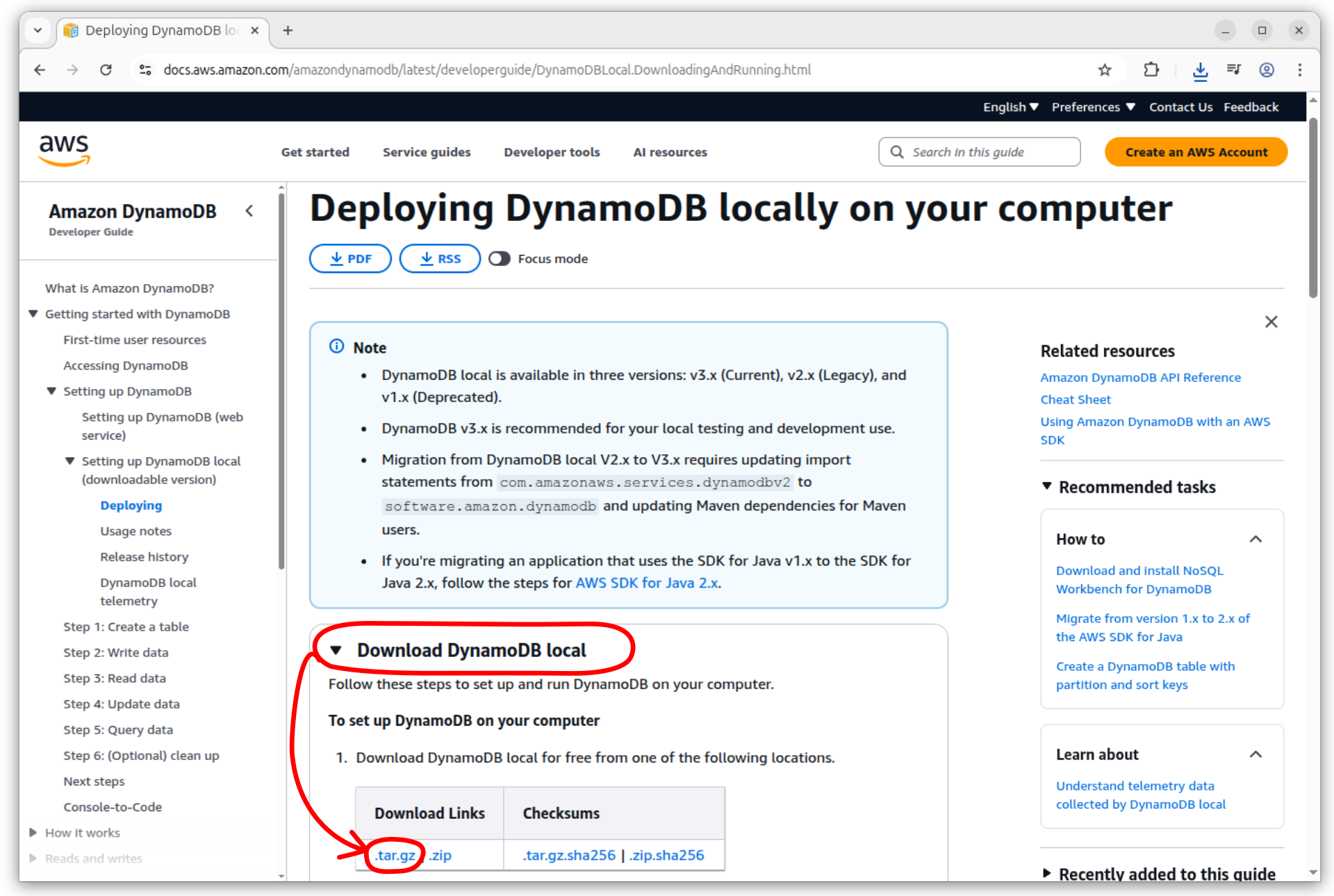

Use the following link to download the latest version of DynamoDB. In the "Download DynamoDB local" category, find the download links and download the .tar.gz.

Install DynamoDB

Now that Java is installed and you downloaded the DynamoDB files, you can proceed with installing DynamoDB.

First, you will need to create a new directory, called dynamodb, in /opt. Then, you will move the DynamoDB files from the default download location to the dynamodb directory.

Assuming the DynamoDB files downloaded to your Downloads folder, use the following commands to create the /opt/dynamodb directory and move the files from Downloads to /opt/dynamodb:

sudo mkdir /opt/dynamodb
sudo mv ~/Downloads/dynamodb_local_latest.tar.gz /opt/dynamodb

Next, extract the tar:

cd /opt/dynamodb
sudo tar xzvf dynamodb_local_latest.tar.gz

Update Permissions

This guide assumes that the current user account is called row64. Since the installations are under the user account, you need to give ownership over the dynamo directory to the row64 user:

sudo chown -R row64:row64 /opt/dynamodb

Start DynamoDB

Navigate the terminal to the dynamodb directory and start the server:

cd /opt/dynamodb
java -Djava.library.path=./DynamoDBLocal_lib -jar DynamoDBLocal.jar -sharedDb

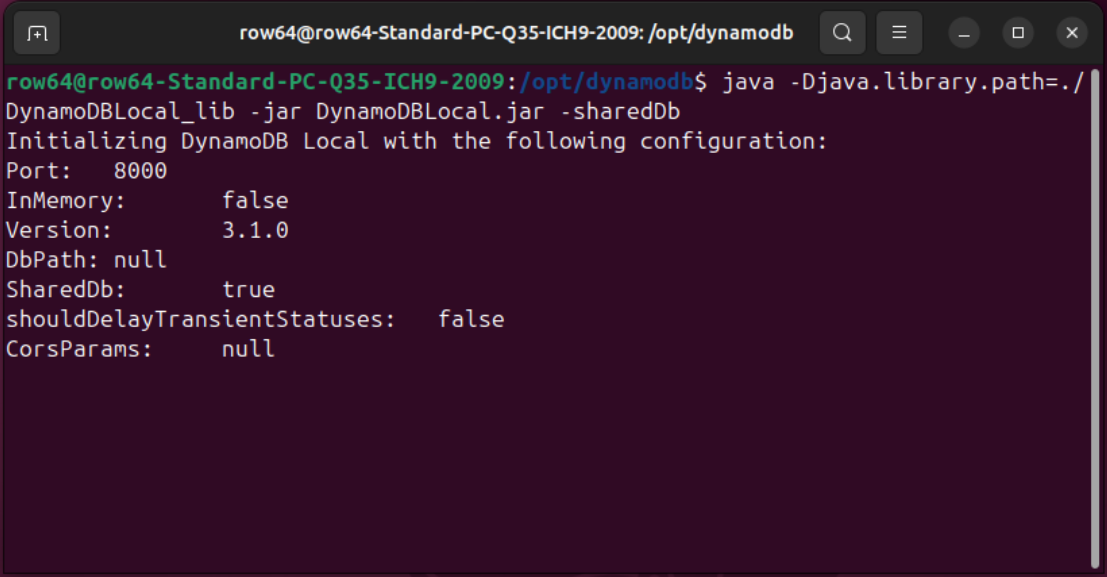

After starting DynamoDB, the terminal will output some basic information:

Note that DynamoDB runs on port 8000 by default. You will use this port number to connect to the Python integration later in this guide.

For now, leave the terminal open that's running DynamoDB. In the next section, you'll simply open a second terminal without closing the existing one.

Tip

Make sure you're in the correct directory when trying to start DynamoDB.

Local Configuration

This section describes how to set up the AWS command line interface (CLI) and configure the local connection.

Install the AWS CLI

Open a second terminal and install the AWS CLI using the following command:

sudo apt install awscli -y

Establish the Local Connection

This tutorial uses a local connection, so rather than using the configure tool to enter online account information, you will use stand-in data. This approach is required to successfully establish a local-only connection.

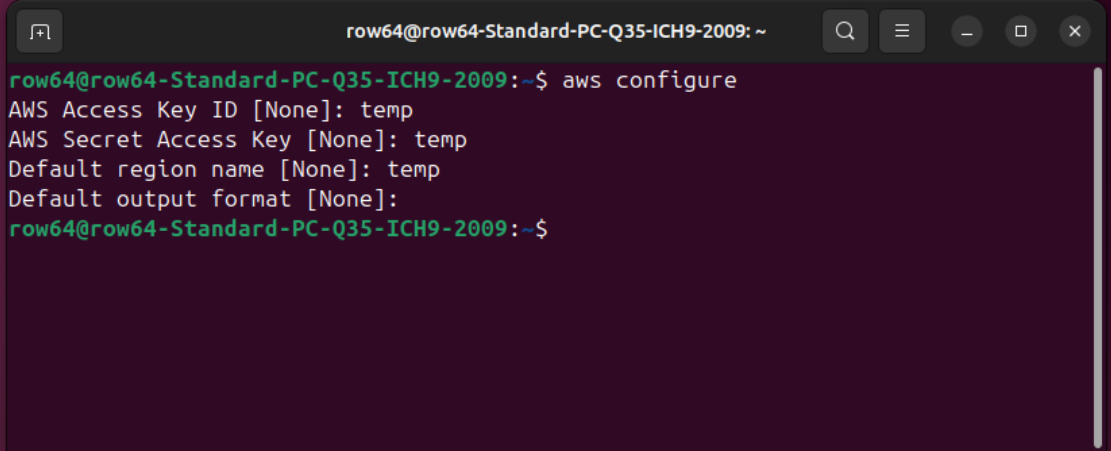

Enter the following command into the second terminal:

aws configure

Enter "temp" for the first three questions and leave the last one blank.

temp
temp
temp
<enter>

Optionally, you could use your Amazon access credentials to complete the configuration as well.

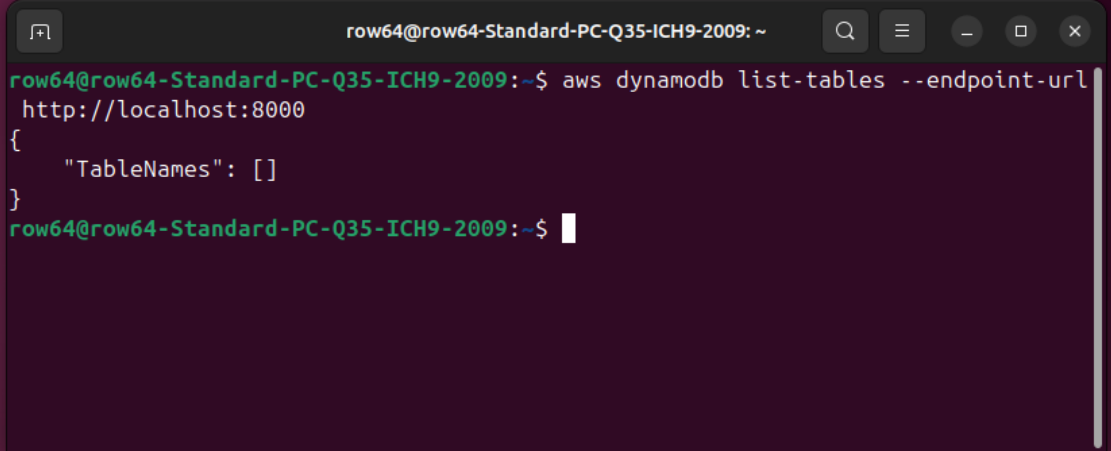

Next, list the tables with the following command:

aws dynamodb list-tables --endpoint-url http://localhost:8000

The table list should currently be blank.

Create an Example Table

Since the table list is blank, you will need to create a new table that can be used to test Row64. Use the following command to create a new table, called Sales:

aws dynamodb create-table \
    --table-name Sales \
    --attribute-definitions AttributeName=UID,AttributeType=S \
    --key-schema AttributeName=UID,KeyType=HASH \
    --provisioned-throughput ReadCapacityUnits=5,WriteCapacityUnits=5 \
    --endpoint-url http://localhost:8000

List the tables again to see if the new Sales table is present:

aws dynamodb list-tables --endpoint-url http://localhost:8000

You should see the Sales table in the list.

Input Sample Data

The Sales table does not yet contain any data. Input some sample data into the table, entering the following commands into the terminal one at a time:

aws dynamodb put-item --table-name 'Sales' --item '{"UID":{"S":"1854"},"date":{"S":"2025-01-21 13:23:44"},"amount": {"N": "446.57"},"product": {"S": "Seal SE Robotic Pool Vacuum"}}' --endpoint-url http://localhost:8000

aws dynamodb put-item --table-name 'Sales' --item '{"UID":{"S":"1855"},"date":{"S":"2025-01-21 13:23:52"},"amount": {"N": "287.24"},"product": {"S": "Tikom Robot Vacuum and Mop"}}' --endpoint-url http://localhost:8000

aws dynamodb put-item --table-name 'Sales' --item '{"UID":{"S":"1856"},"date":{"S":"2025-01-21 13:24:03"},"amount": {"N": "1376.28"},"product": {"S": "ECOVACS DEEBOT T20 Omni Robot Vacuum"}}' --endpoint-url http://localhost:8000

aws dynamodb put-item --table-name 'Sales' --item '{"UID":{"S":"1857"},"date":{"S":"2025-01-21 13:24:17"},"amount": {"N": "3200.10"},"product": {"S": "Husqvarna Automower 430XH"}}' --endpoint-url http://localhost:8000

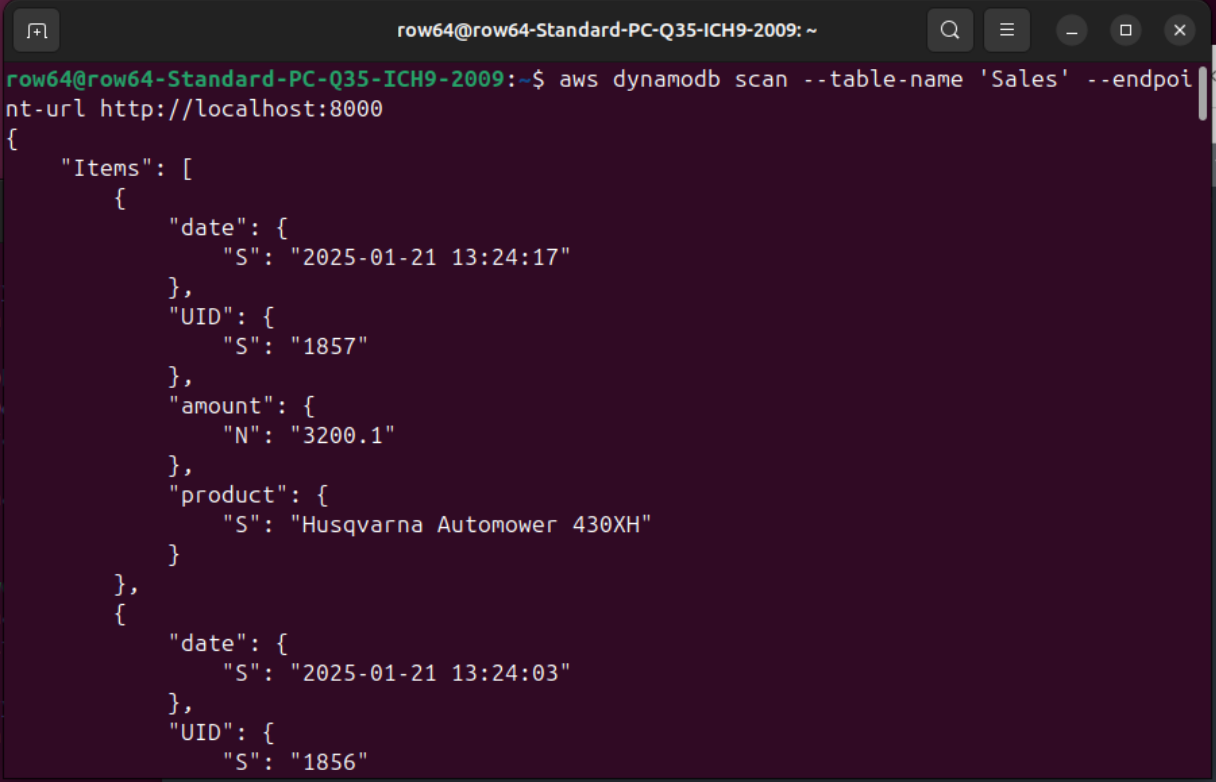

After the data is entered, print the contents of the table to the terminal to view the data:

aws dynamodb scan --table-name 'Sales' --endpoint-url http://localhost:8000

Tip

You can hold down the ENTER key to scroll through the data.

Prepare Python

For working with Python in Ubuntu, when you need to perform pip installations, it's best practice to install a second instance of Python. This will prevent pip dependencies from corrupting Ubuntu system calls.

The simplest way to manage multiple versions of Python is to use pyenv, which you will set up in the next section. For further reading, if you would like to learn more about pyenv, you can reference the following article:

Install pyenv

To simplify the setup, we've automated the pyenv installation. From the root of the integration in GitHub, download the Setup_pyenv.py file.

Once downloaded, use the following command to run the setup script:

python3 Setup_pyenv.py

With pyenv set up, you are enabled to safely install the needed pip libraries for the Python integration.

Install Python Pip Libraries

Install the Python libraries used to connect to the database and transfer a .ramdb file. In the terminal, enter the following commands one at a time:

pip install row64tools

pip install python-dotenv

pip install boto3

pip install paramiko

pip install scp

Create the Loading Folder

You will need a folder to store and load the .ramdb files into Row64 Server. For further reading, you can learn more about how .ramdb files are loaded at the following article:

In this example, .ramdb files will be loaded into a Temp folder in Row64. Create the new Temp directory as the row64 user. (Row64 Server needs to have been installed prior to this step). Use the following command to create the loading folder:

mkdir -p /var/www/ramdb/loading/RAMDB.Row64/Temp

Note

In this example, since you are installing DynamoDB and Row64 Server on the same instance, you don't have to set up SSH. If you want to modify your configuration so that these are on separate instances, however, you will need to configure SSH transfers.

To set up SSH, you can reference another integration page that uses SSH, such as MongoDB. Check out the SSH setup section of the MongoDB page to learn how to configure SSH:

MongoDB Integration

The .py file for the MongoDB integration also provides a simple code example.

Prepare and Run the Integration

Download the Row64 integration for DynamoDB from GitHub. Specifically, download the AmazonDynamoDB.py file:

Navigate the terminal to the integration's directory.

Run the Python integration:

python AmazonDynamoDB.py

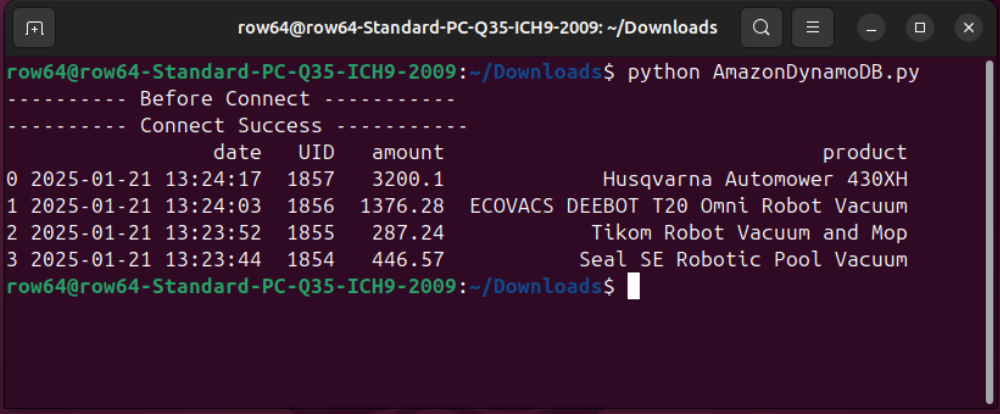

If everything worked, the terminal should state that the connection was successful, and it should output some sample data:

Test with ByteStream Viewer

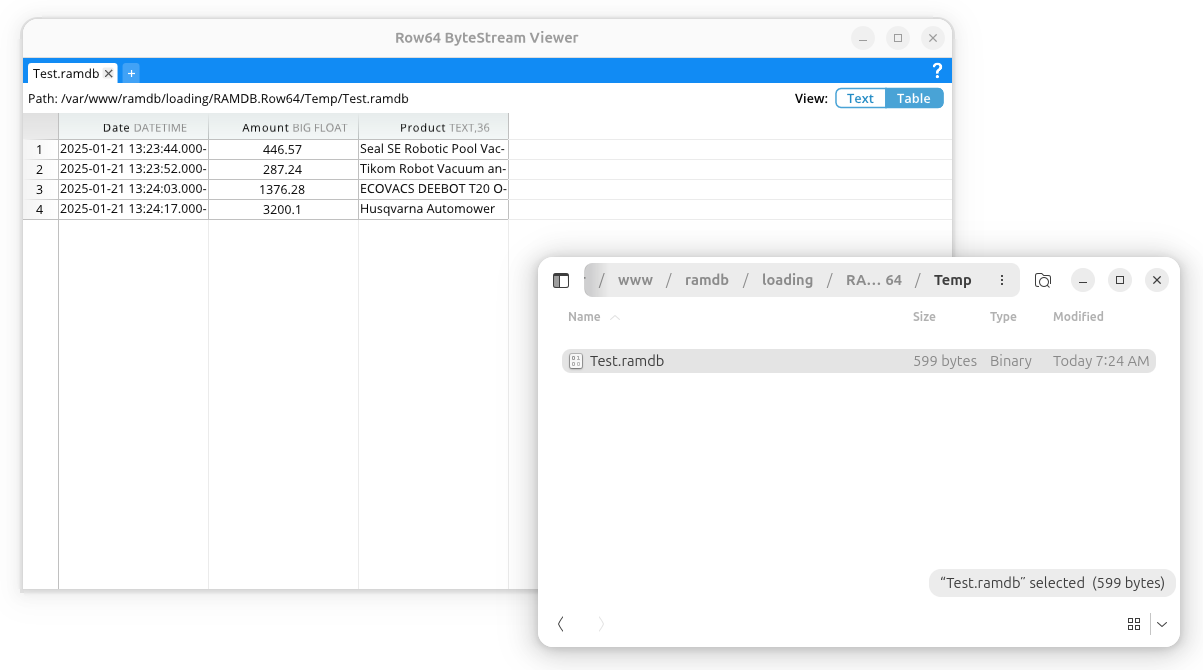

Once you see the file copy over to Ubuntu, you can install ByteStream Viewer to visualize the data. To install ByteStream Viewer on Ubuntu, you can reference the following documentation:

You can drag and drop the .ramdb file directly into ByteStream Viewer to open it quickly.

Alternatively, you can simply open the file in Row64 Studio.

Continual Updates

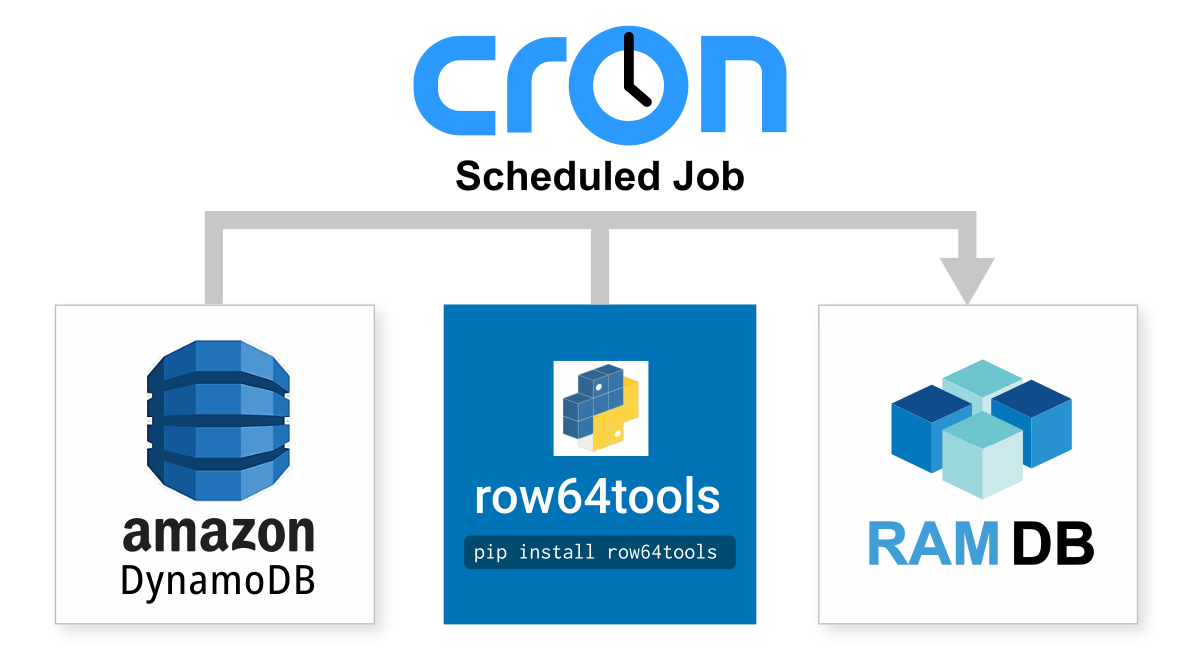

Cron jobs are the simple and production-proven Linux tool for continual updates. The following article provides a simple example on how to set them up:

All you need to do is take the integration .py file and set up a cron job to run it at your data refresh rate, from every day to every 20 seconds.

If your update rate is faster than 60 seconds, be sure to update your row64 config in:

/opt/row64server/conf/config.json

Modify "RAMDB_UPDATE" to match the desired update speed.
