Csv File Integration

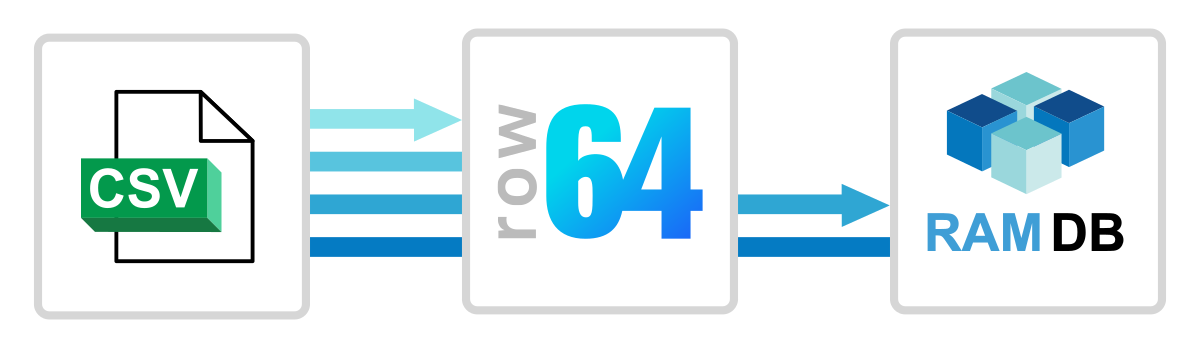

The CSV format is the simplest and most popular file format for storing, transferring, and debugging data. CSV stands for "comma-separated values," and a CSV file is simply a text file that contains rows (records) of plain-text data, with each column delimited by a character such as a comma, a semicolon, or a space. CSV files are found in almost all data platforms and tools. CSV files integrate easily with Row64 by wiring to Row64 RamDb through Python.

Integration Overview

This integration primarily uses Python Pandas. This walkthrough will guide you in establishing an integration with CSV files, which will involve:

  • Running the integration in Ubuntu 25.01

  • Creating and transferring .csv files to Row64 Server

  • Converting the .csv files to .ramdb files

  • Loading the updates to dashboards

Download the Integration

Download the Row64 integration for CSV from GitHub:

The full integration is found in the "Csv" folder.

Set Up a Non-OS Python

For working with Python in Ubuntu, when you need to perform pip installations, it's best practice to install a second instance of Python. This will prevent pip dependencies from corrupting Ubuntu system calls.

The simplest way to accomplish this is to install pyenv. For further reading, the following article explains managing multiple instances of Python with pyenv:

To simplify the setup, we've automated the pyenv installation. From the root of the integration in GitHub, download the Setup_pyenv.py and run it with:

python3 Setup_pyenv.py

Once pyenv is set up, you can work with the folder specific to the integration to install the needed pip libraries and Python integration, calling python instead of the OS-level python3. To do this, proceed to the next section.

Install Python Pip Libraries

Install the Python libraries needed to connect to the database and transfer a .ramdb file. In a terminal, enter the following command:

pip install row64tools

Run the Integration

In a previous step, you should have downloaded the Python integration from GitHub. Now that the needed Python libraries are installed, you can run the integration. Use the following command:

python Csv_To_Ramdb.py

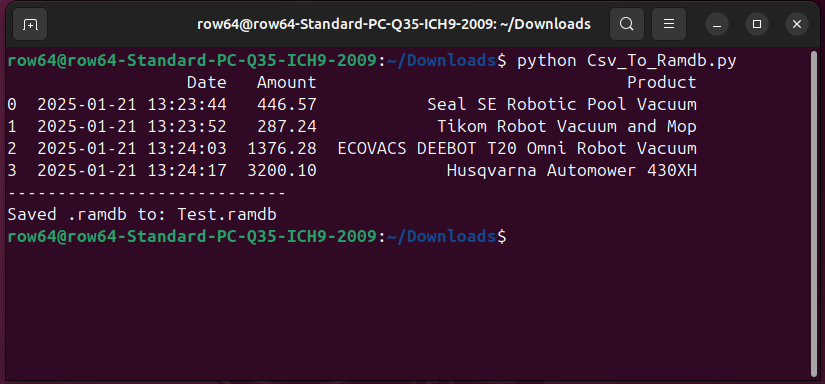

If everything worked correctly, your terminal should output some lines of sample data:

Test with ByteStream Viewer

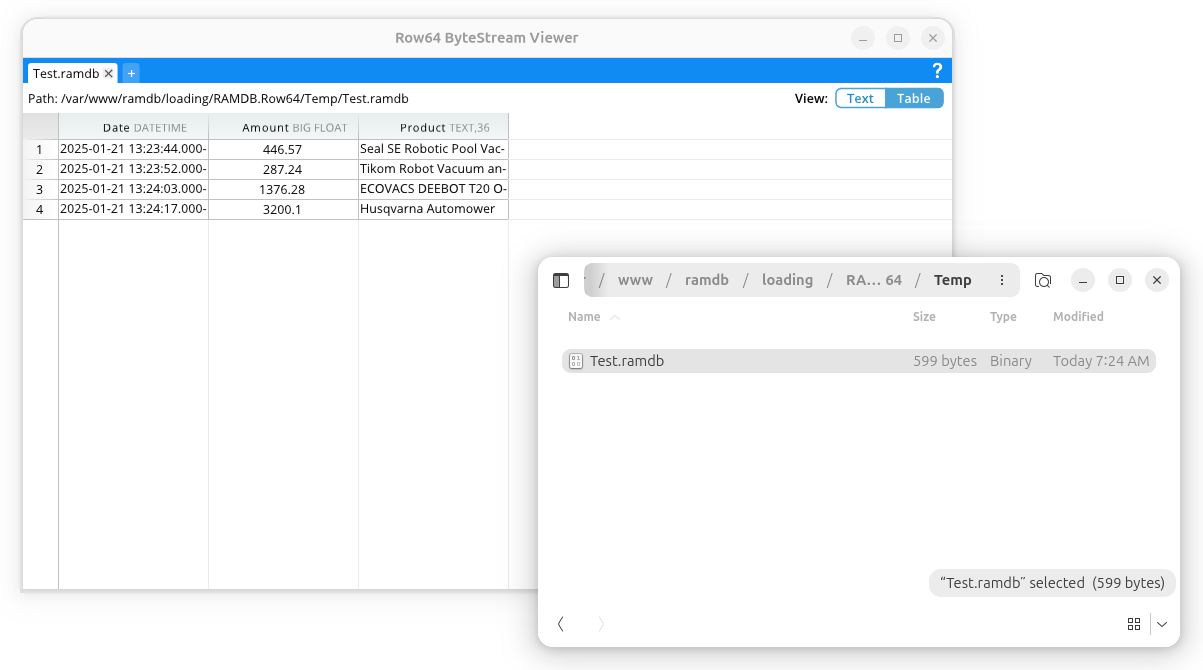

Once the file is successfully copying over to Ubuntu, you can use ByteStream Viewer to visualize the data.

To install ByteStream Viewer on Ubuntu, you can reference the following documentation. After installing and testing ByteStream Viewer, return to this page.

You can drag and drop the .ramdb file into ByteStream Viewer to open it quickly.

Set Up a Loading Folder

The final step is to create a loading folder and to transfer the .ramdb file to it. The loading folder acts as a drop folder where the server will retrive the file and update all future dashboards.

Creating a live loading folder involves row64tools. For further reading, more information on row64tools is available at the following article. Please note that you already installed row64tools in a previous step, so there is no need to install it again.

Create a directory for loading. Create this folder as the row64 user so that Row64 has proper access to it:

mkdir -R /var/www/ramdb/loading/RAMDB.Row64/Temp

Next, modify the integration .py file so that you write into the new loading folder. Open the integration .py file in a text editor and locate the following line:

ramdbPath = 'Test.ramdb'

Change the value of ramdbPath to:

ramdbPath = '/var/www/ramdb/loading/RAMDB.Row64/Temp/Test.ramdb'

Save the file. Now, it will automatically push updates to Row64 Server. From here, you can modify the name of the folder and the .ramdb file to load different dataframes into different folders, if desired.
