Test Examples and Troubleshooting

Test Examples

After installing Row64, use the following links to run test dashboard examples in the Firefox browser:

• http://localhost/dash/examples/amazon
• http://localhost/dash/examples/bubble-widget
• http://localhost/dash/examples/business-process
• http://localhost/dash/examples/cell-towers
• http://localhost/dash/examples/census
• http://localhost/dash/examples/expenses
• http://localhost/dash/examples/game-level
• http://localhost/dash/examples/garden-city
• http://localhost/dash/examples/markers
• http://localhost/dash/examples/new-or-used
• http://localhost/dash/examples/org-chart
• http://localhost/dash/examples/power
• http://localhost/dash/examples/profit
• http://localhost/dash/examples/robotic-sales
• http://localhost/dash/examples/seasonal
• http://localhost/dash/examples/sentiment
• http://localhost/dash/examples/shoes
• http://localhost/dash/examples/urban-analytics
• http://localhost/dash/examples/water
• http://localhost/dash/examples/weather
• http://localhost/dash/examples/widget

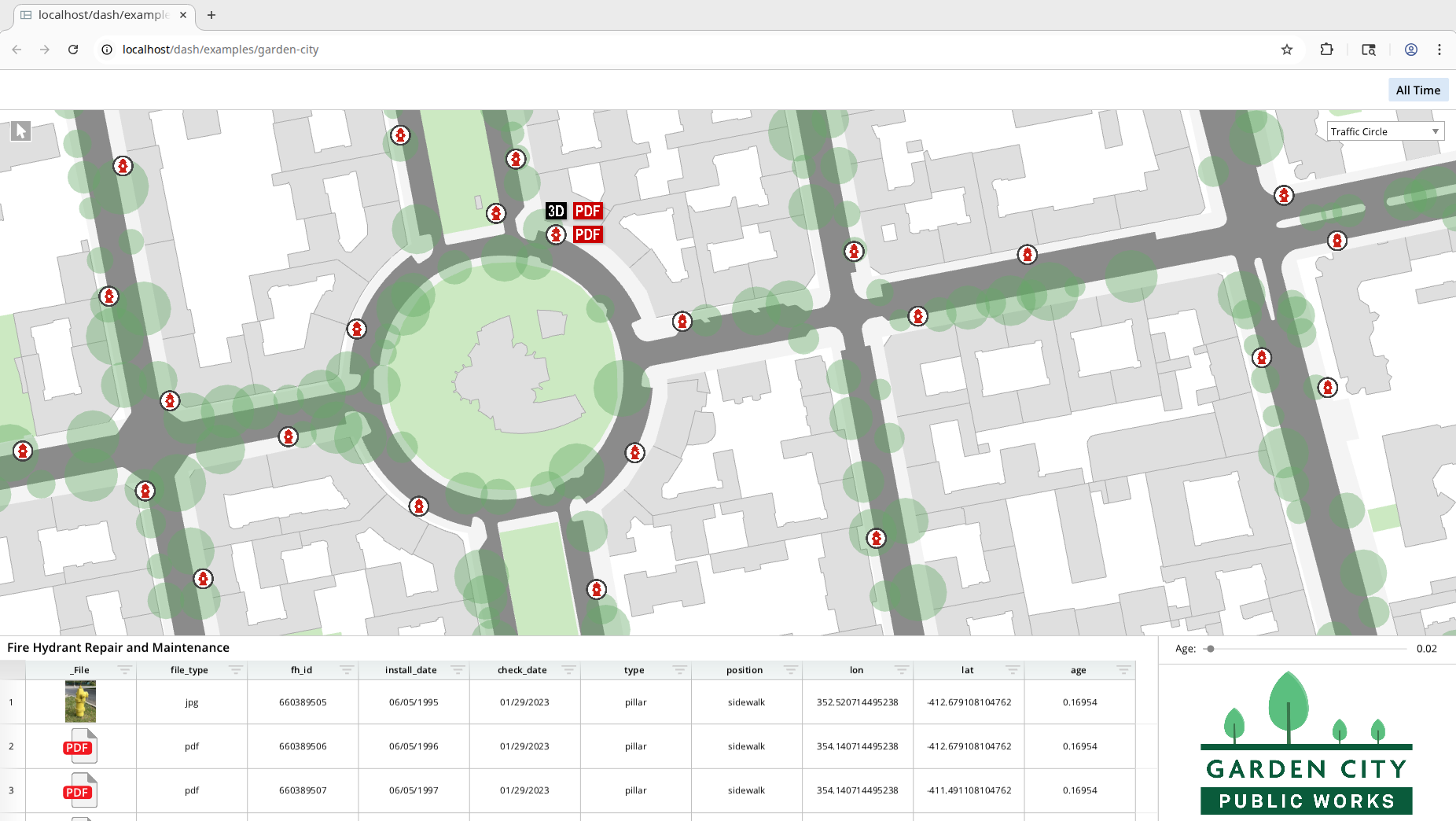

Example Garden-City Dashboard:

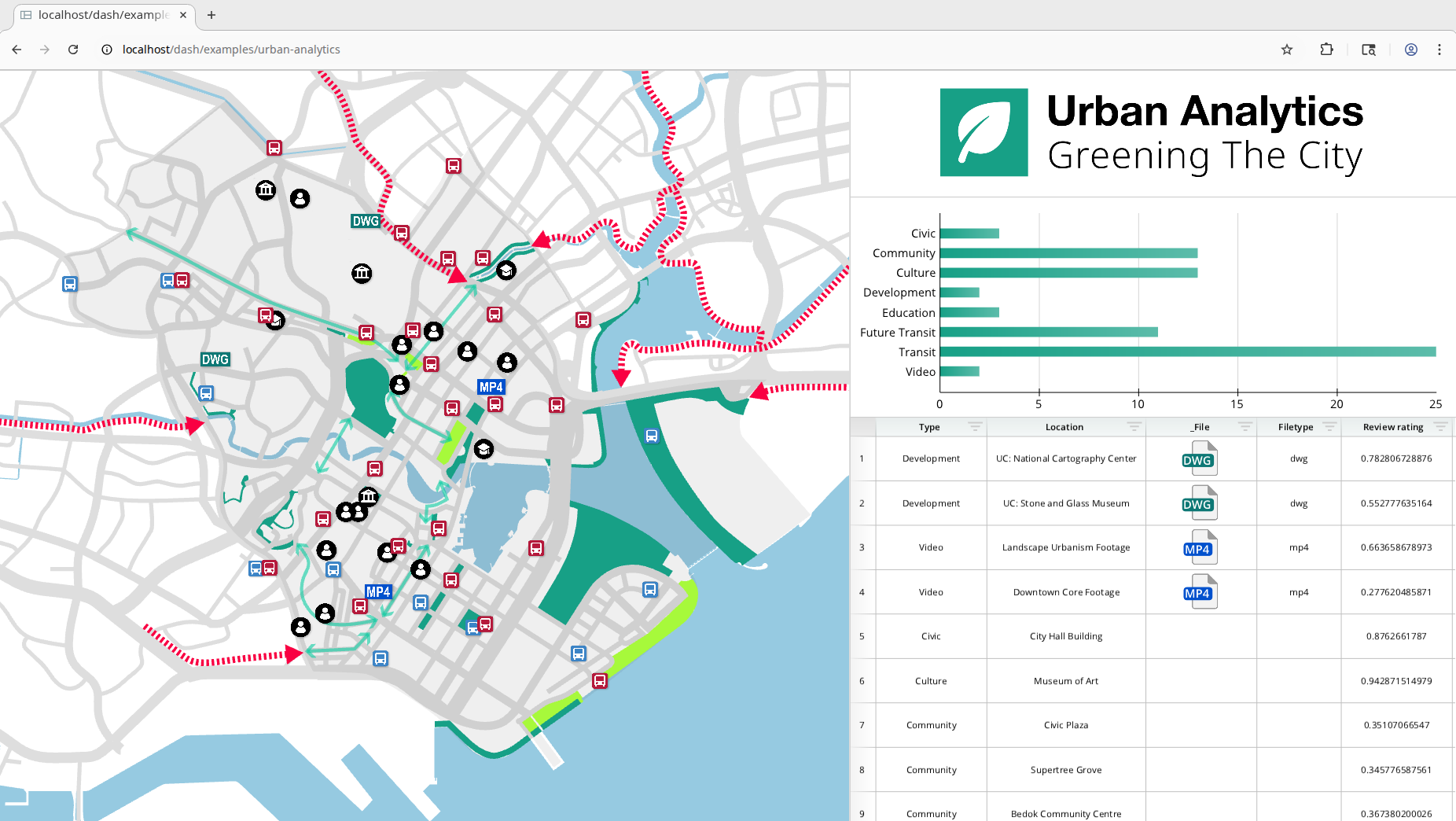

Example Urban-Analytics Dashboard:

Troubleshooting

If you are unable to load the test examples, here are steps to isolate the problem:

• Make sure your browser is up to date.

• Ping the server machine to confirm from the client to confirm it is accessible (if not consult with your it team)

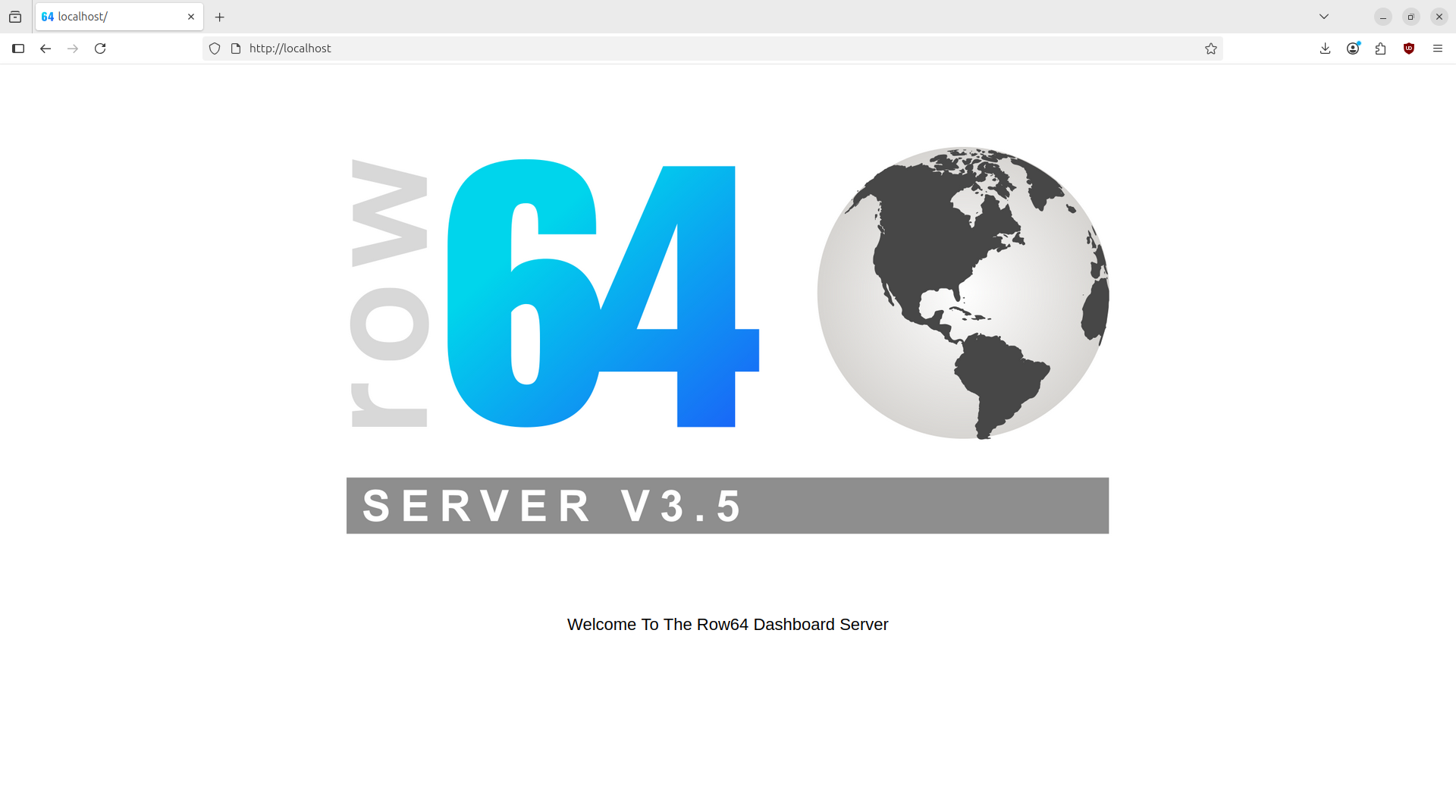

• Server Connection - type in the row64server name in the browser URL window. You should see the image below confirming you can connect to the server:

• If you cannot check, reconfirm with IT ports 80 & 9002 are accessible from your machine.

• If you see the server page but get a blank screen when you type the full dashboard URL examples, check the following:

  • Ensure the example URL is correctly spelled

  • Clear your browser cache (If you have updated IP addresses, you will need to clear the cache, See your browser's specific instructions to do so.)

  • Confirm IP ws or wss address in /var/www/html/dash/connect.js matches the IP address of the Row64server (what would be visible from the client accessing the server)

  • If it does not match, manually update the address, and set the "AUTO_CONNECT_JS" variable to FALSE in the /opt/row64server/conf/config.json file and restart the server.

  • If there are still issues, inspect Browser Debug console for other error messages
